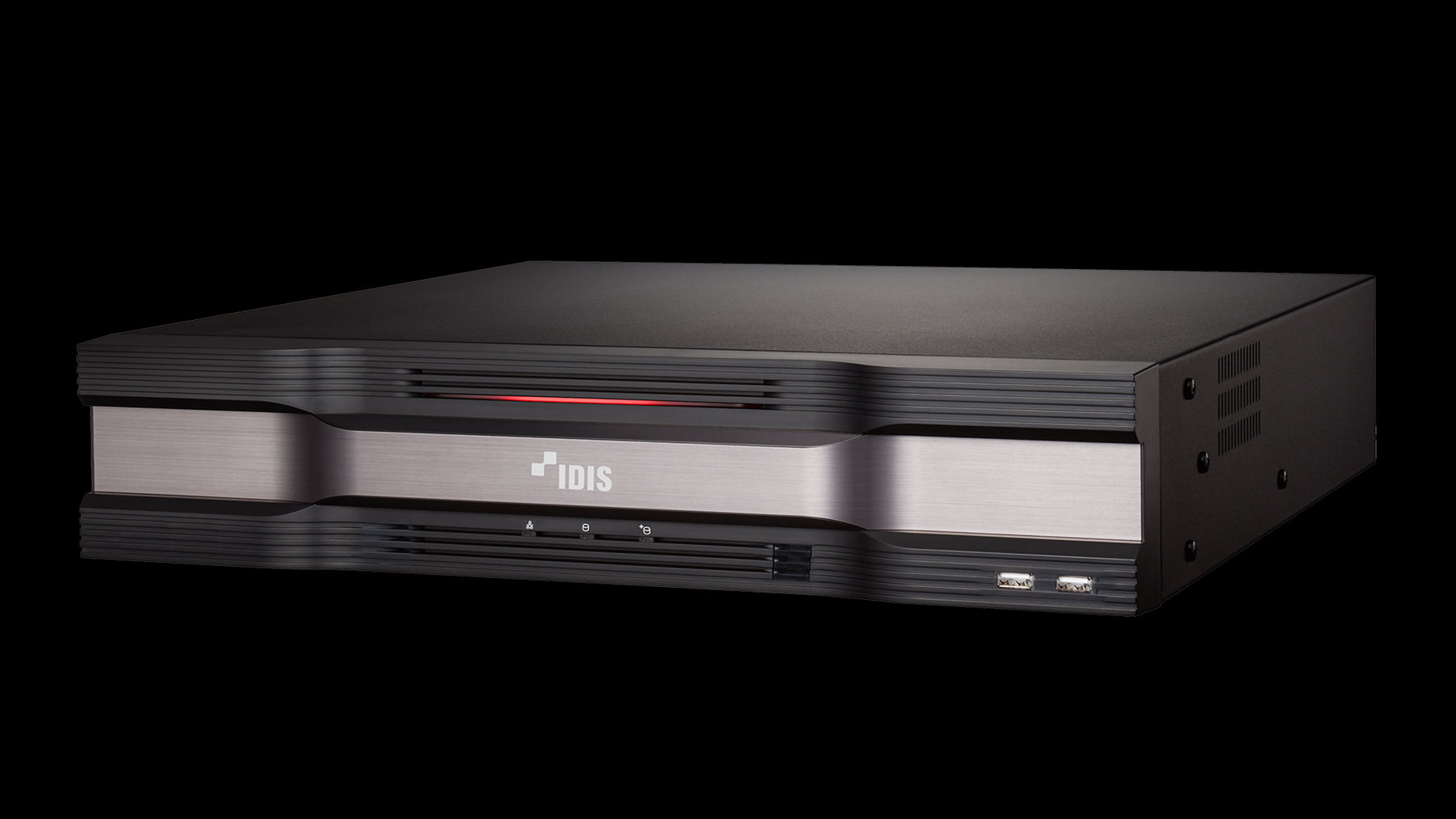

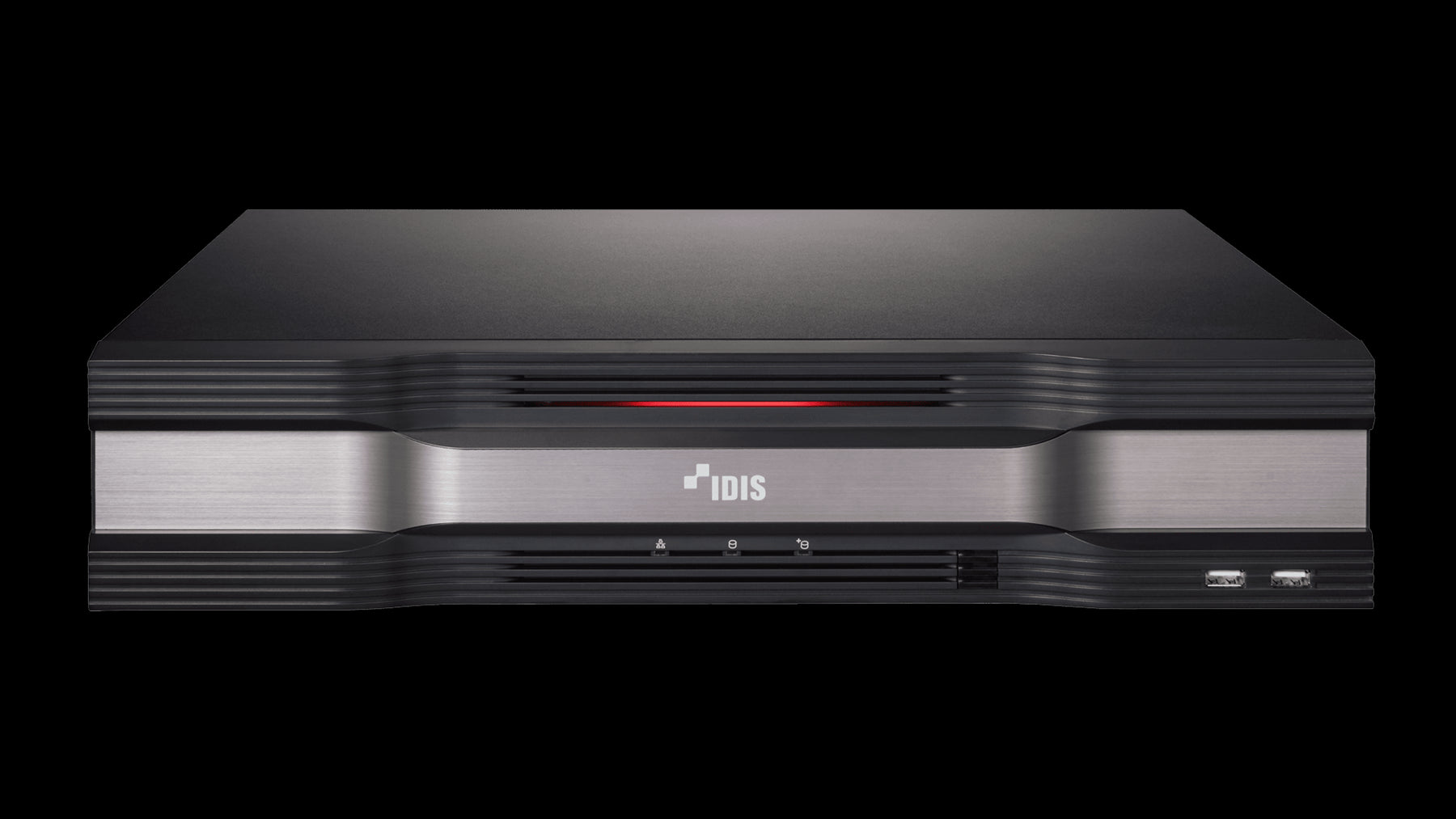

Idis DR-6532P-A DirectIP 6500 Series H.265 4K Recorder

DR-6532P-A DirectIP 6500 Series H.265 4K Recorder | NDAA Compliant | 960ips Live Display

The DR-6532P-A DirectIP 6500 Series H.265 4K Recorder is an advanced network video recorder (NVR) built for high-performance surveillance and professional security setups. Designed to deliver UHD real-time recording and playback, this recorder supports up to 960ips at 4K resolution. With a built-in 16-channel PoE switch, RAID 1 support, and robust compatibility with DirectIP cameras, this system ensures seamless integration and unparalleled video quality for large-scale surveillance networks.

Key Features:

• 4K Real-Time Recording & Display: Supports up to 960ips UHD recording and live display with resolutions of up to 3840 x 2160 for crystal-clear surveillance, ideal for high-definition security monitoring.

• H.265 & H.264 Compression: Supports both H.265 and H.264 video compression formats, offering excellent video quality with reduced bandwidth and storage requirements.

• Built-in 16-Channel PoE Switch: Integrated PoE (Power over Ethernet) capabilities simplify installation and reduce cable clutter by delivering both power and data over a single Ethernet cable to compatible cameras.

• RAID 1 Storage Support: The RAID 1 configuration ensures data redundancy, protecting your recorded footage from hard drive failures and providing enhanced reliability.

• Third-Party Camera Support: Compatible with a wide range of IP cameras including Axis, Panasonic, and other ONVIF-compliant cameras, giving you flexibility to mix and match security equipment.

• Easy Setup & One-Click Network Configuration: Simplifies system installation with a FEN service for one-click network configuration and easy setup for DirectIP cameras, making deployment quick and straightforward.

• Advanced Event Detection: The system supports various trigger events such as motion detection, line crossing, face detection, tampering, and audio detection, helping you set up alerts for suspicious activities.

• Two-Way Audio: Two-way audio functionality allows for communication through the system, adding a layer of interactivity and security when monitoring your premises.

• Synchronous Playback: Enjoy 32-channel synchronous playback, making it easy to review footage from multiple cameras simultaneously.

• Digital Zoom: Offers x2 ~ x12 digital zoom, allowing detailed examination of video feeds without compromising quality.

• Multiple Video Outputs: With two HDMI outputs, you can connect the recorder to multiple monitors for enhanced viewing and control.

Specifications:

• Video Inputs: 32 IP channels

• Max. Incoming Throughput: 370Mbps

• Supported Cameras: DirectIP, Axis, Panasonic, ONVIF

• Video Outputs: 2 HDMI (3840 x 2160, 1920 x 1200, 1920 x 1080, 1680 x 1050, 1600 x 1200)

• Display Speed: Up to 960ips

• Recording Resolution: Up to 12MP (depends on camera)

• Video Compression: H.265, H.264

• Recording Modes: Time-lapse, Event, Pre-event, Panic

• Storage: SATA x 6, eSATA x 4 (RAID 1 supported)

• Storage Capacity: Total capacity varies with HDD models

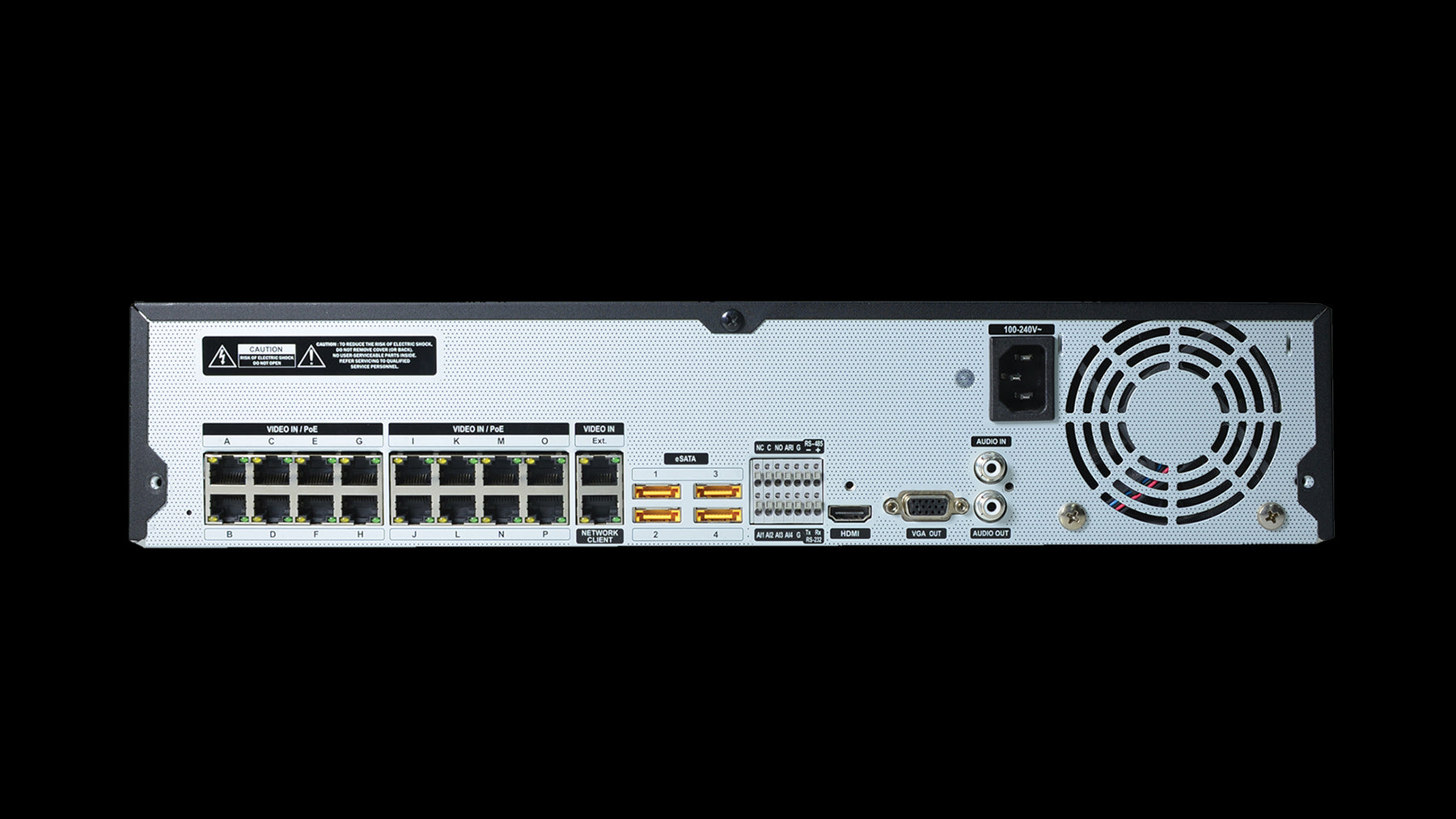

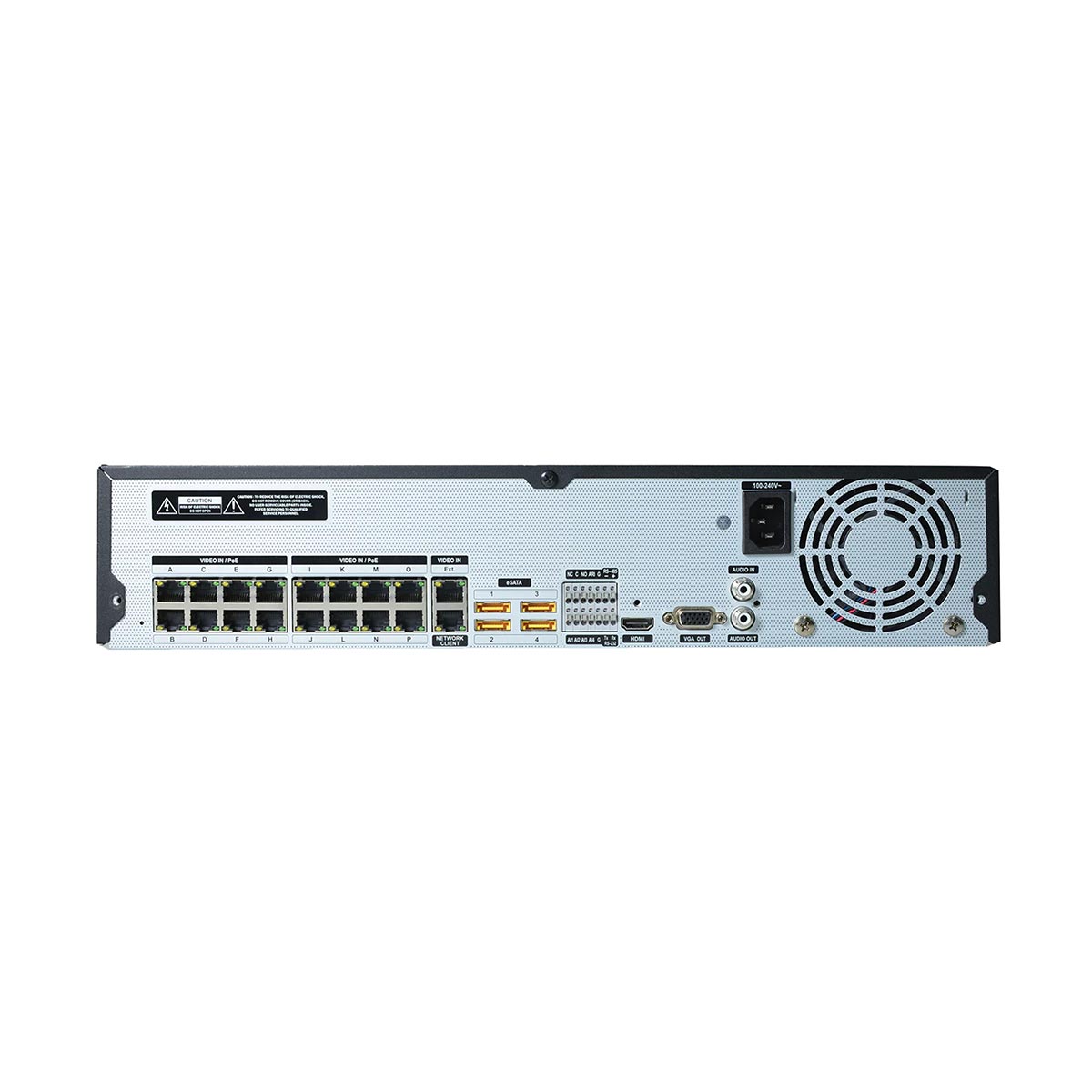

• Network Ports: Gigabit Ethernet x1 (Client), Gigabit Ethernet x16 + Gigabit Ethernet (Ext) x1

• PSE Power: PoE (IEEE 802.3at Class 4), 16 Ports, 200W

• Audio: 32 inputs/32 outputs (depending on camera), 1 RCA + 2 HDMI (local NVR)

• Alarm Inputs/Outputs: 4/1 (Local NVR), 32/32 (IP Camera)

• USB Ports: USB 2.0 x2, USB 3.0 x1

• Interface: Mouse, IR Remote Control, Network Remote Keyboard

• Operating System: Embedded Linux

• Operating Temperature: 0°C to 40°C (32°F ~ 104°F)

• Operating Humidity: 0% ~ 90%

• Power Consumption: 100-240V~, 50/60Hz, 4.0-2.0A, 360W

• Approvals: FCC, UL, CE, CB

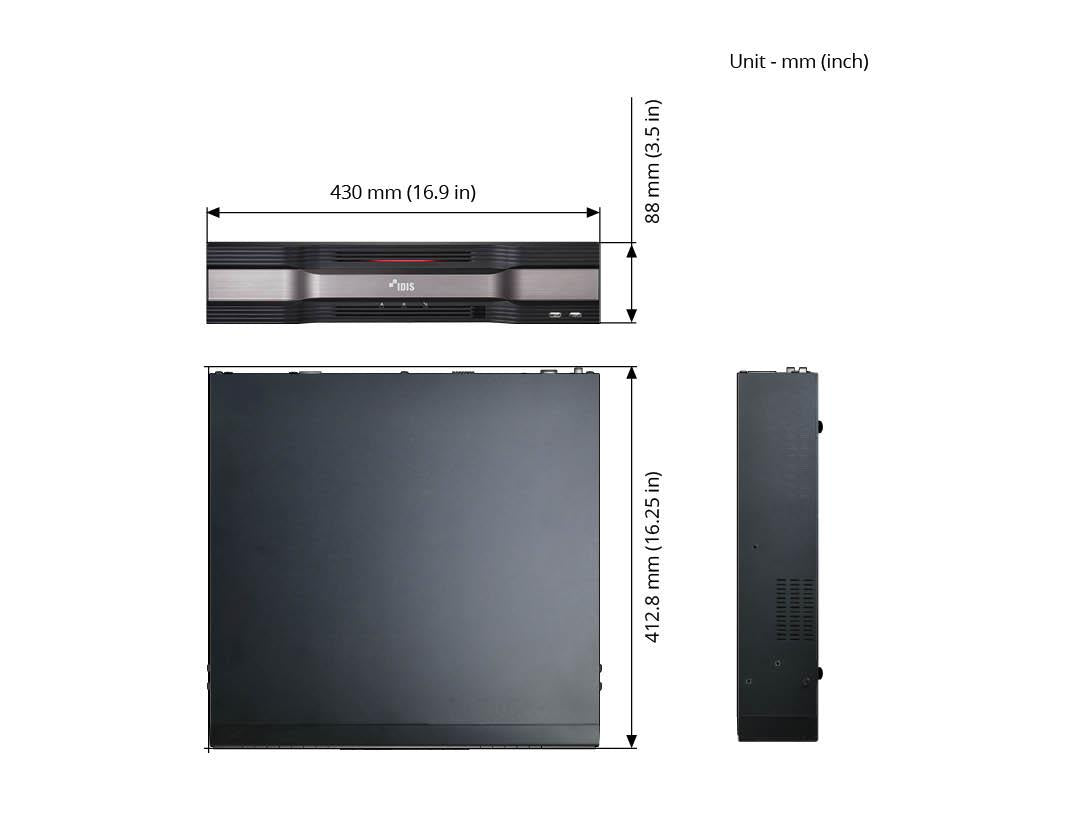

• Dimensions: 430mm x 88mm x 412.8mm (16.9" x 3.5" x 16.25")

• Weight: 6.75kg (14.88lb) with 1 HDD

What’s in the Box:

• DR-6532P-A Recorder

• Mounting Hardware

• Quick Start Guide

• Power Cable

Ideal For:

• Large-Scale Surveillance

• Commercial, Industrial, & Retail Settings

• High-Resolution Video Monitoring

• High-Throughput Surveillance Networks

• Integration with Multiple Camera Brands

The DR-6532P-A DirectIP 6500 Series H.265 4K Recorder delivers top-tier performance, flexibility, and ease of use for demanding security applications. With its high-resolution capabilities, advanced storage options, and powerful features, this NVR ensures seamless, real-time video monitoring and playback for enterprise-level security systems.
