Idis TC-D4232WR 2MP IR Dome Camera

TC-D4232WR 2MP IR Dome Camera | SONY IMX 307 Starvis CMOS Sensor | IK10 | IP67

Ensure clear, reliable security with the TC-D4232WR 2MP IR Dome Camera, designed for high-performance surveillance in both indoor and outdoor environments. Featuring a 1/2.8" SONY IMX 307 Starvis CMOS sensor, this camera delivers outstanding image quality even in low light conditions. With advanced features like True WDR, defog capabilities, and high-power infrared LEDs, this camera ensures high-quality video surveillance day or night.

Key Features:

• Superior Image Quality: Powered by the SONY IMX 307 Starvis CMOS Sensor, the TC-D4232WR captures Full HD 1080p resolution, providing clear, sharp images with excellent color accuracy, even in low-light environments.

• Up Scaler Function: Enhance image detail by upscaling from 1080p to 5MP for a higher resolution experience and greater image clarity.

• Built-in High-Power IR LED: Offers a 30m (98.4 ft) infrared range for clear nighttime footage, ensuring surveillance operates flawlessly day and night.

• Mechanical Filter Change Unit (ICR): Automatic switching between color and black-and-white modes enhances image clarity during changing light conditions.

• True WDR: With Frame Base True WDR (Wide Dynamic Range), this camera ensures balanced exposure and clarity in both bright and dark areas of the frame.

• Privacy Masking: Supports up to 16 privacy zones, allowing you to block specific areas of the camera’s view for privacy or sensitive areas.

• Digital Noise Reduction: DNR (Digital Noise Reduction) technology helps eliminate noise, providing a cleaner and sharper image, especially in low-light conditions.

• Defog Function: Ensures clear video in adverse weather conditions by automatically compensating for fog, haze, or mist.

• Vandal-Proof & Weather-Resistant: IK10-rated for vandal resistance and IP67-rated for waterproofing, making this camera ideal for harsh environments.

• Multi-Language Support: Supports English, Japanese, Korean, Chinese, Portuguese, and Spanish, making it easy for international users.

• Flexible Installation: The MFZ lens (motorized zoom/focus) provides the flexibility to adjust the camera’s focal length remotely, and with Day & Night Mode, this camera automatically switches for optimal performance.

Specifications:

• Image Sensor: 1/2.8" SONY IMX 307 Starvis CMOS Sensor

• Resolution: Full HD 1080p (1920 x 1080)

• Lens: MFZ (Motorized Zoom/Focal) 2.7-13.5mm

• Min. Illumination:

  • Color: 0.03 Lux (50 IRE), 0.015 Lux (15 IRE)

  • B/W: 0.015 Lux (50 IRE), 0.007 Lux (15 IRE), 0 Lux (IR LED ON)

• IR Distance: Up to 30m (98.4 ft)

• Day & Night: ICR (Infrared Cut Filter)

• Dynamic Range: True WDR (Wide Dynamic Range)

• Power Supply: 12V DC, 24V AC

• Power Consumption: 5.5W

• Video Output: 1 BNC Out (TVI, AHD, CVBS)

• Operating Temperature: -10°C ~ +55°C (14°F ~ 131°F)

• Operating Humidity: 0% ~ 95%

• Vandal-Proof Rating: IK10

• Weatherproof Rating: IP67

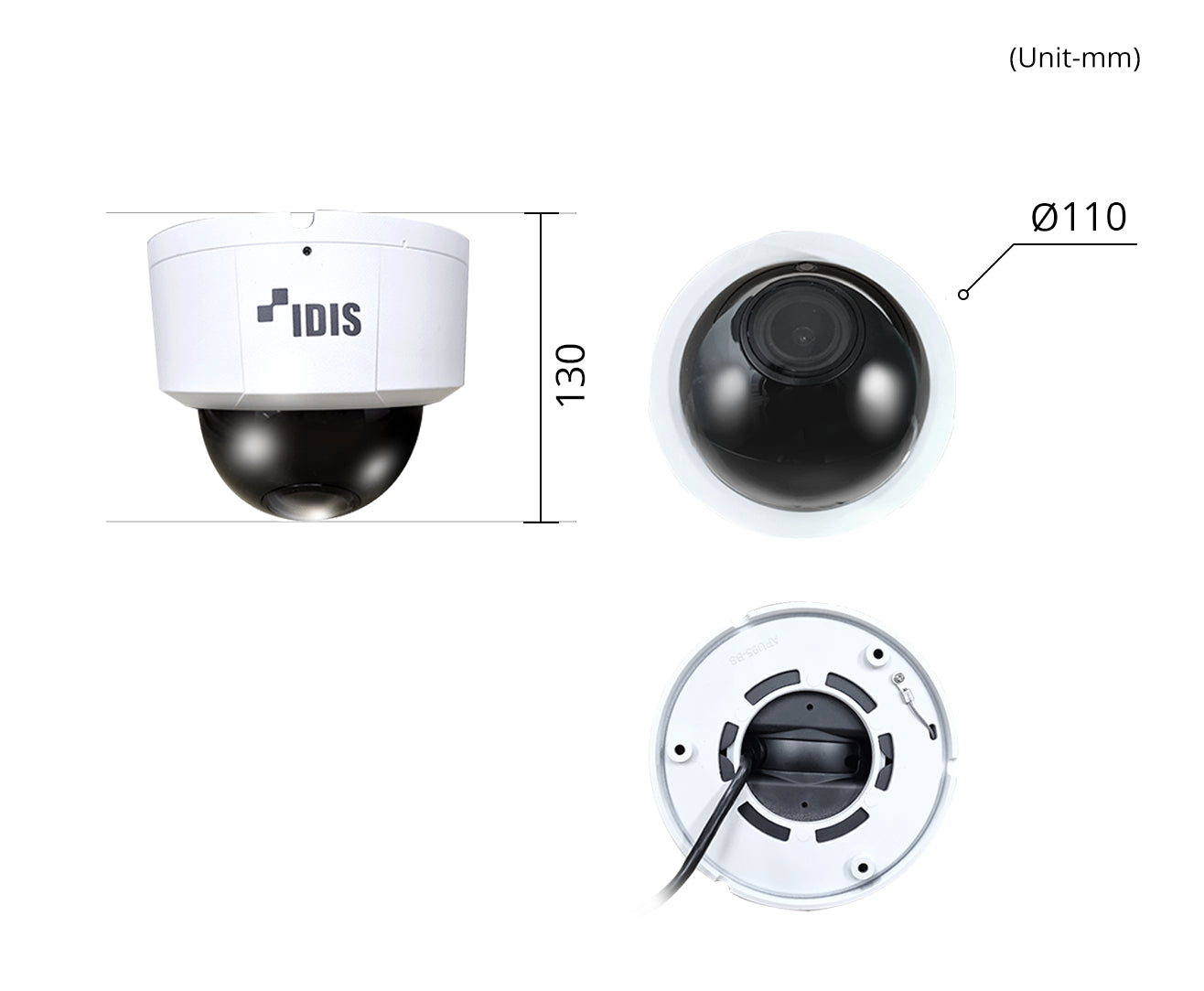

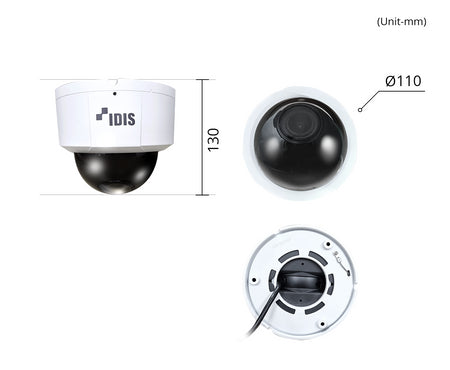

• Dimensions: Ø130 x 110mm (Ø5.12” x 4.33”)

• Weight: 0.6 kg (1.32 lb)

What’s in the Box:

• TC-D4232WR Camera

• Mounting Accessories

• Quick Start Guide

Ideal For:

• Commercial & Retail Spaces

• Industrial Sites & Perimeter Protection

• Parking Lots & Outdoor Surveillance

• Schools, Offices, & Public Areas

• Areas Needing Robust, Weatherproof Solutions
